Investigation#
First, let’s explore our data.
idot = pd.read_csv('../../data/idot_abbrv.csv')
idot.head()
year | reason | any_search | search_hit | driver_race | beat | district | |
---|---|---|---|---|---|---|---|
0 | 2019 | moving | 0 | 0 | black | 215 | 2 |
1 | 2019 | equipment | 0 | 0 | white | 2422 | 24 |
2 | 2019 | moving | 0 | 0 | black | 1522 | 15 |
3 | 2019 | moving | 0 | 0 | black | 2432 | 24 |
4 | 2019 | moving | 0 | 0 | hispanic | 2423 | 24 |
idot.shape
(925805, 7)
Our dataset has 7 columns and 925,805 rows where each row is a traffic stop that occurred in Chicago.
The 7 variables can be described as follows:
year
- the year the traffic stop happenedreason
- the reason for the stop, one of: moving, equipment, license, or noneany_search
- a boolean variable indicating whether (1) or not (0) the car or any of its passengers were searched during the traffic stopsearch_hit
- a boolean variable indicating whether (1) or not (0) anything illegal was found during a search (value is 0 if no search was conducted)driver_race
- perceived race of the driver as reported by the officer, one of: black, white, hispanic, asian, am_indian, or otherbeat
- the police beat in which the traffic stop occurred (first 2 digits indicate the surrounding police district)district
- the police district in which the traffic stop occurred
Let’s look at these variables more closely.
idot.year.unique()
array([2019, 2020])
Using .unique
, we can see that the dataset includes stops from the years 2019-2020, but we are only interested in 2020. Let’s filter the data so that we only have data for 2020.
idot_20 = idot.loc[idot.year == 2020].reset_index(drop=True)
idot_20.head()
year | reason | any_search | search_hit | driver_race | beat | district | |
---|---|---|---|---|---|---|---|
0 | 2020 | moving | 0 | 0 | am_indian | 1024 | 10 |
1 | 2020 | moving | 0 | 0 | hispanic | 433 | 4 |
2 | 2020 | equipment | 0 | 0 | black | 1021 | 10 |
3 | 2020 | equipment | 0 | 0 | black | 735 | 7 |
4 | 2020 | moving | 0 | 0 | black | 2011 | 20 |
idot_20.shape
(327290, 7)
Now, we have 327,290 stops in our data. There is a lot of interesting data here including whether the car was searched, if the officer found contraband (called a ‘hit’), and where the stop occurred (the police district and beat). For example, Hyde Park is in district 2. Let’s see how many stops occurred in district 2.
idot_20.groupby("district")["reason"].count()
district
1 9347
2 15905
3 14510
4 20800
5 8567
6 11035
7 27101
8 17449
9 12383
10 24979
11 41736
12 14788
14 8468
15 24066
16 4575
17 7994
18 9588
19 7132
20 8118
22 5729
24 7542
25 23515
31 1963
Name: reason, dtype: int64
So, there were 15,905 traffic stops made in the district surrounding Hyde Park in 2020.

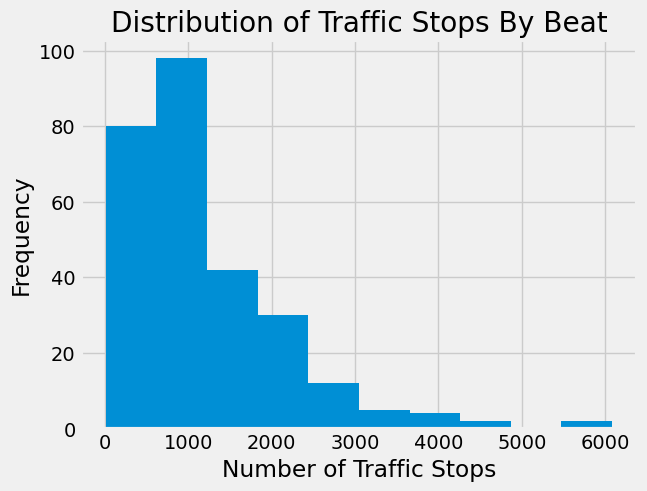

We can create a histogram to see the distribution of numbers of stops per police beat.
plt.hist(idot_20.groupby("beat")["reason"].count());
plt.xlabel("Number of Traffic Stops")
plt.ylabel("Frequency")
plt.title("Distribution of Traffic Stops By Beat")
plt.show()
This shows that there is a wide range of numbers of stops in each police beat.The variability we see is likely due to a number of factors including unequal population and land area between beats as well as differing road size and traffic levels.
Two beats have around 6,000 stops, more than any other beat in 2020. Let’s identify those beats.
stop_counts = idot_20.groupby("beat")[["reason"]].count()
stop_counts[stop_counts.reason > 5000]
reason | |
---|---|
beat | |
1112 | 6081 |
1533 | 5875 |
Upon inspection, these beats are both west of downtown Chicago and beat 1533 contains part of interstate 290.
We can also investigate the reason for the traffic stops.
idot_20.groupby("reason")["district"].count()
reason
equipment 131250
license 66398
moving 129638
none 4
Name: district, dtype: int64
In 2020, 129,638 people were stopped for moving violations (like speeding or not using a blinker), 131,250 were stopped because of equipment (like a burnt out taillight), 66,398 were stopped for an invalid license, and there were 4 cases where the reason was not entered in the database.
Traffic Stops#
This is all very interesting, but we wanted to investigate the stop rates for drivers of different races. We can do this using the variable driver_race
. First, let’s drop some of the columns that we don’t need for now.
idot_20_abbrv = idot_20.drop(columns=["reason","beat","district"])
idot_20_abbrv
year | any_search | search_hit | driver_race | |
---|---|---|---|---|
0 | 2020 | 0 | 0 | am_indian |
1 | 2020 | 0 | 0 | hispanic |
2 | 2020 | 0 | 0 | black |
3 | 2020 | 0 | 0 | black |
4 | 2020 | 0 | 0 | black |
... | ... | ... | ... | ... |
327285 | 2020 | 0 | 0 | asian |
327286 | 2020 | 0 | 0 | black |
327287 | 2020 | 0 | 0 | white |
327288 | 2020 | 0 | 0 | black |
327289 | 2020 | 0 | 0 | hispanic |
327290 rows × 4 columns
Recall, we also could have selected only the columns we wanted instead of dropping the columns we didn’t need (see Chapter 6).
Now, let’s group the data by driver_race
and count how many drivers of each race were stopped in 2020.
stopped = idot_20_abbrv.groupby("driver_race")["year"].count().reset_index().rename(columns={"year":"num_stopped"})
stopped
driver_race | num_stopped | |
---|---|---|
0 | am_indian | 1176 |
1 | asian | 7448 |
2 | black | 204203 |
3 | hispanic | 78449 |
4 | other | 895 |
5 | white | 35053 |
From this table, it certainly looks like more Black and Hispanic drivers were stopped in 2020 than drivers of other races. However, we are only looking at raw counts. It will be easier to see a pattern if we convert these counts to a proportion of total stops and then visualize the data.
stopped['prop_stopped'] = np.round(stopped['num_stopped'] / 327290, decimals=4)
stopped
driver_race | num_stopped | prop_stopped | |
---|---|---|---|
0 | am_indian | 1176 | 0.0036 |
1 | asian | 7448 | 0.0228 |
2 | black | 204203 | 0.6239 |
3 | hispanic | 78449 | 0.2397 |
4 | other | 895 | 0.0027 |
5 | white | 35053 | 0.1071 |

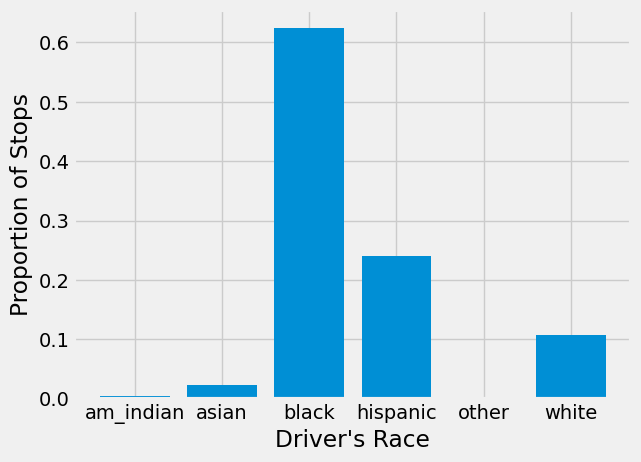

plt.bar(stopped['driver_race'], stopped["prop_stopped"])
plt.xlabel("Driver's Race")
plt.ylabel("Proportion of Stops")
plt.show()
From this figure, we can see that approximately 62% of drivers stopped were Black, 24% were Hispanic, and 11% were White.
The Benchmark#
In order to do a benchmark analysis, we need a benchmark for comparison, in this case, the population of Chicago. Next, we will read-in data on the estimated driving population of each race by beat. This dataset was created by a research team at the University of Chicago Data Science Institute.
Note that these benchmark populations are not integers. This data was estimated probabilistically using data on age and race of drivers (see the explanation in the previous section) which resulted in continuous estimates.
pop = pd.read_csv('../../data/adjusted_population_beat.csv')
pop[["White","Black","Hispanic","Asian","Native","Other"]] = pop[["White","Black","Hispanic","Asian","Native","Other"]].apply(np.round, decimals=4)
pop.head()
beat | White | Black | Hispanic | Asian | Native | Other | |
---|---|---|---|---|---|---|---|
0 | 1713 | 1341.0698 | 1865.3001 | 937.4999 | 317.0765 | 0.0000 | 0.0 |
1 | 1651 | 0.0000 | 0.0000 | 0.0000 | 0.0000 | 0.0000 | 0.0 |
2 | 1914 | 641.2881 | 5878.7811 | 1621.2010 | 407.4879 | 0.0000 | 0.0 |
3 | 1915 | 1178.3223 | 1331.1240 | 1597.0273 | 283.1750 | 0.0000 | 0.0 |
4 | 1913 | 739.5932 | 2429.8962 | 535.7215 | 121.0840 | 159.0156 | 0.0 |
Since, we are interested in Chicago as a whole, we can sum over beats to get the estimated population for all of Chicago.
pop_total = pop.sum(axis=0).to_frame(name="est_pop").reset_index().rename(columns={'index': 'driver_race'})
pop_total
driver_race | est_pop | |
---|---|---|
0 | beat | 335962.0000 |
1 | White | 298755.1974 |
2 | Black | 248709.5311 |
3 | Hispanic | 222341.2245 |
4 | Asian | 60069.7684 |
5 | Native | 2664.8764 |
6 | Other | 212.5375 |
Clearly, the beat row gives us no useful information, so let’s drop it.
pop_total = pop_total.drop([0])
pop_total
driver_race | est_pop | |
---|---|---|
1 | White | 298755.1974 |
2 | Black | 248709.5311 |
3 | Hispanic | 222341.2245 |
4 | Asian | 60069.7684 |
5 | Native | 2664.8764 |
6 | Other | 212.5375 |
Now, we can calculate proportions of the population, similar to what we did with number of traffic stops above.
pop_total['prop_pop'] = np.round(pop_total['est_pop'] / pop_total['est_pop'].sum(), decimals=4)
pop_total
driver_race | est_pop | prop_pop | |
---|---|---|---|
1 | White | 298755.1974 | 0.3588 |
2 | Black | 248709.5311 | 0.2987 |
3 | Hispanic | 222341.2245 | 0.2670 |
4 | Asian | 60069.7684 | 0.0721 |
5 | Native | 2664.8764 | 0.0032 |
6 | Other | 212.5375 | 0.0003 |
We want to compare these proportions with the proportion of stops we calculated above. This is easier to do if they are in the same DataFrame. We can combine them using merge
, but first, we need to make sure each race has the same name in both DataFrames. One DataFrame has races capitalized, while the other is all lowercase. Also, one DataFrame uses the shortened term ‘native’ while the other uses ‘am_indian’. Let’s use .apply
and .replace
to fix this.
def to_lowercase(x):
'''A function that takes in a string and returns that string converted to all lowercase letters'''
return x.lower()
pop_total['driver_race'] = pop_total['driver_race'].apply(to_lowercase)
pop_total
driver_race | est_pop | prop_pop | |
---|---|---|---|
1 | white | 298755.1974 | 0.3588 |
2 | black | 248709.5311 | 0.2987 |
3 | hispanic | 222341.2245 | 0.2670 |
4 | asian | 60069.7684 | 0.0721 |
5 | native | 2664.8764 | 0.0032 |
6 | other | 212.5375 | 0.0003 |
The .replace
method can be used along with a dictionary to map values from a series onto different values. In this case, we are mapping all occurrences of ‘native’ to ‘am_indian’.
race_map = {"native":"am_indian"}
pop_total['driver_race'] = pop_total['driver_race'].replace(race_map)
pop_total
driver_race | est_pop | prop_pop | |
---|---|---|---|
1 | white | 298755.1974 | 0.3588 |
2 | black | 248709.5311 | 0.2987 |
3 | hispanic | 222341.2245 | 0.2670 |
4 | asian | 60069.7684 | 0.0721 |
5 | am_indian | 2664.8764 | 0.0032 |
6 | other | 212.5375 | 0.0003 |
stops_vs_pop = stopped.merge(pop_total)
stops_vs_pop
driver_race | num_stopped | prop_stopped | est_pop | prop_pop | |
---|---|---|---|---|---|
0 | am_indian | 1176 | 0.0036 | 2664.8764 | 0.0032 |
1 | asian | 7448 | 0.0228 | 60069.7684 | 0.0721 |
2 | black | 204203 | 0.6239 | 248709.5311 | 0.2987 |
3 | hispanic | 78449 | 0.2397 | 222341.2245 | 0.2670 |
4 | other | 895 | 0.0027 | 212.5375 | 0.0003 |
5 | white | 35053 | 0.1071 | 298755.1974 | 0.3588 |

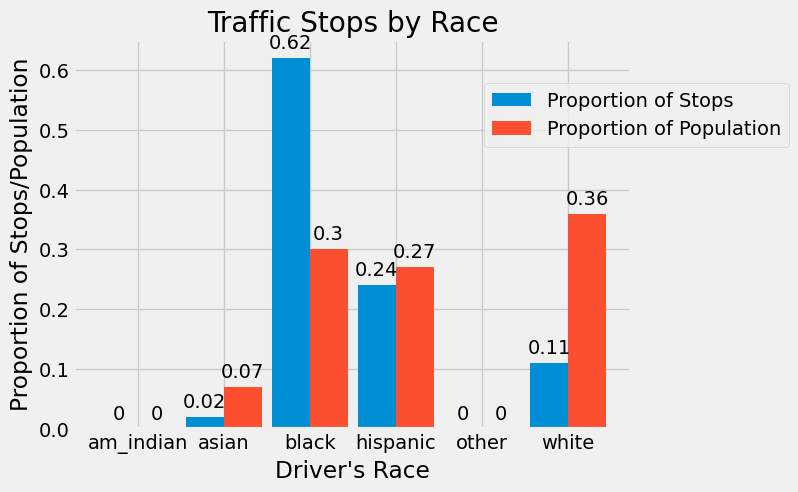

x = np.arange(len(stops_vs_pop.driver_race)) # the label locations
width = 0.44 # the width of the bars
fig, ax = plt.subplots()
rects1 = ax.bar(x, round(stops_vs_pop.prop_stopped,2), width, label="Proportion of Stops")
ax.bar_label(rects1, padding=4)
rects2 = ax.bar(x + width, round(stops_vs_pop.prop_pop,2), width, label="Proportion of Population")
ax.bar_label(rects2, padding=4)
# Add some text for labels, title and custom x-axis tick labels, etc.
ax.set_ylabel('Proportion of Stops/Population')
ax.set_xlabel("Driver's Race")
ax.set_title('Traffic Stops by Race')
ax.set_xticks(x + width/2, stops_vs_pop.driver_race)
ax.legend(loc=4, bbox_to_anchor=(1.3, 0.7))
plt.show()
Using this figure, we can see that American Indian, Hispanic, and Other drivers are all stopped at a proportion that is similar to the proportion of the population they make up. However, Black drivers are stopped twice as often as we would expect to see according to their population, and Asian and White drivers are stopped at rates less than their proportion of the population.
Searches#
Our data doesn’t just have information on stops. It also has information on whether the driver or car were searched during the traffic stop. Let’s investigate searches and hits by race as well. This type of investigation is called an outcomes analysis since we are comparing the outcomes (hits) of searches.
searched = idot_20_abbrv.groupby("driver_race")[["any_search","search_hit"]].sum().reset_index().rename(columns={"any_search":"num_searched", "search_hit":"num_hit"})
searched
driver_race | num_searched | num_hit | |
---|---|---|---|
0 | am_indian | 3 | 1 |
1 | asian | 31 | 12 |
2 | black | 3712 | 980 |
3 | hispanic | 1140 | 317 |
4 | other | 5 | 3 |
5 | white | 190 | 66 |
Again, let’s convert counts to proportions. For number of searches, we will convert to proportion of total searches. For number of hits, we will convert to proportion of searches that resulted in a hit.
searched['prop_searched'] = np.round(searched['num_searched'] / searched['num_searched'].sum(), decimals=4)
searched
driver_race | num_searched | num_hit | prop_searched | |
---|---|---|---|---|
0 | am_indian | 3 | 1 | 0.0006 |
1 | asian | 31 | 12 | 0.0061 |
2 | black | 3712 | 980 | 0.7306 |
3 | hispanic | 1140 | 317 | 0.2244 |
4 | other | 5 | 3 | 0.0010 |
5 | white | 190 | 66 | 0.0374 |

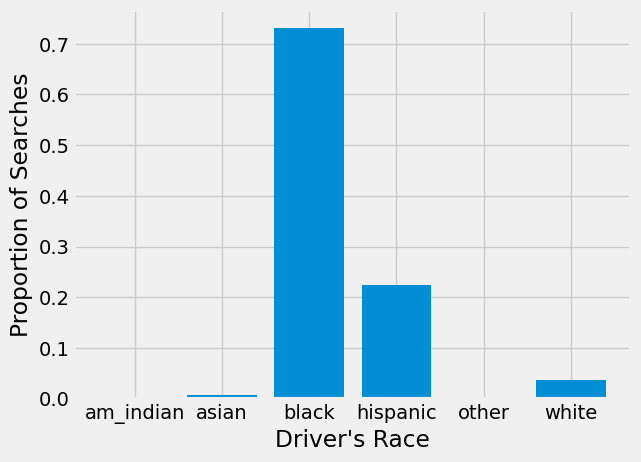

plt.bar(searched['driver_race'], searched["prop_searched"])
plt.xlabel("Driver's Race")
plt.ylabel("Proportion of Searches")
plt.show()
We can see from this barchart that Black drivers are searched much more often than drivers of any other race. Over 70% of searches conducted in 2020 were of Black drivers!
Are these searches successful? If these were necessary searches, officers should be finding contraband more often when searching Black drivers.
searched['prop_hit'] = np.round(searched['num_hit'] / searched['num_searched'], decimals=4)
searched
driver_race | num_searched | num_hit | prop_searched | prop_hit | |
---|---|---|---|---|---|
0 | am_indian | 3 | 1 | 0.0006 | 0.3333 |
1 | asian | 31 | 12 | 0.0061 | 0.3871 |
2 | black | 3712 | 980 | 0.7306 | 0.2640 |
3 | hispanic | 1140 | 317 | 0.2244 | 0.2781 |
4 | other | 5 | 3 | 0.0010 | 0.6000 |
5 | white | 190 | 66 | 0.0374 | 0.3474 |

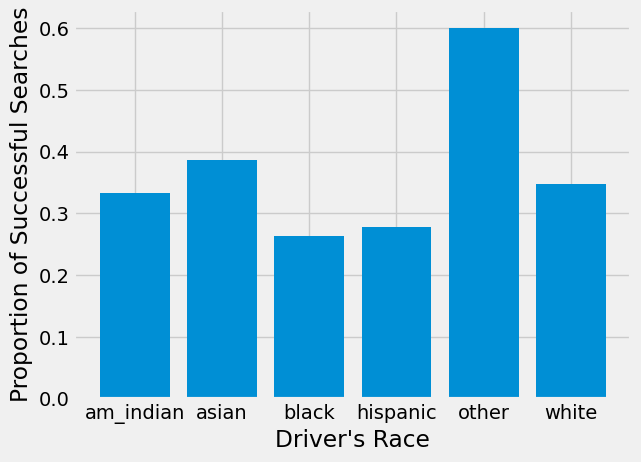

plt.bar(searched['driver_race'], searched["prop_hit"])
plt.xlabel("Driver's Race")
plt.ylabel("Proportion of Successful Searches")
plt.show()
American Indian, Asian, and other drivers all have small numbers of searches. Focusing on the 3 races with enough searches to analyze, we see that, despite being searched more often, searches of Black drivers result in a hit slightly less often than searches of White drivers.

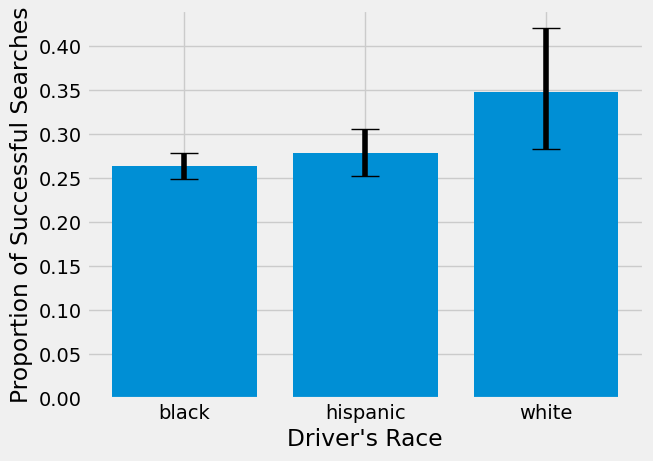

We see a slightly taller bar for White drivers in the previous barchart. It would be interesting to know if contraband is found on White drivers significantly more often than Black drivers. Let’s add a confidence interval to the point estimates shown in the plot. We will focus on the three most common races in our data: Black, Hispanic, and White.
First, we create 1000 bootstrap samples and calculate hit proportions for White, Black, and Hispanic drivers in each sample.
props_white = np.array([])
props_black = np.array([])
props_hispanic = np.array([])
for i in np.arange(1000):
bootstrap_sample = idot_20_abbrv.sample(len(idot_20_abbrv),replace=True)
searches = bootstrap_sample.groupby("driver_race")[["any_search","search_hit"]].sum().reset_index().rename(columns={"any_search":"num_searched", "search_hit":"num_hit"})
searches['prop_hit'] = searches['num_hit'] / searches['num_searched']
resampled_white = searches[searches.driver_race == "white"]["prop_hit"]
resampled_black = searches[searches.driver_race == "black"]["prop_hit"]
resampled_hispanic = searches[searches.driver_race == "hispanic"]["prop_hit"]
props_white = np.append(props_white, resampled_white)
props_black = np.append(props_black, resampled_black)
props_hispanic = np.append(props_hispanic, resampled_hispanic)
white_ci = np.percentile(props_white, [2.5,97.5])
black_ci = np.percentile(props_black, [2.5,97.5])
hispanic_ci = np.percentile(props_hispanic, [2.5,97.5])
---------------------------------------------------------------------------
KeyboardInterrupt Traceback (most recent call last)
Cell In[28], line 6
4 for i in np.arange(1000):
5 bootstrap_sample = idot_20_abbrv.sample(len(idot_20_abbrv),replace=True)
----> 6 searches = bootstrap_sample.groupby("driver_race")[["any_search","search_hit"]].sum().reset_index().rename(columns={"any_search":"num_searched", "search_hit":"num_hit"})
7 searches['prop_hit'] = searches['num_hit'] / searches['num_searched']
8 resampled_white = searches[searches.driver_race == "white"]["prop_hit"]
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/groupby.py:3052, in GroupBy.sum(self, numeric_only, min_count, engine, engine_kwargs)
3047 else:
3048 # If we are grouping on categoricals we want unobserved categories to
3049 # return zero, rather than the default of NaN which the reindexing in
3050 # _agg_general() returns. GH #31422
3051 with com.temp_setattr(self, "observed", True):
-> 3052 result = self._agg_general(
3053 numeric_only=numeric_only,
3054 min_count=min_count,
3055 alias="sum",
3056 npfunc=np.sum,
3057 )
3059 return self._reindex_output(result, fill_value=0)
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/groupby.py:1834, in GroupBy._agg_general(self, numeric_only, min_count, alias, npfunc)
1825 @final
1826 def _agg_general(
1827 self,
(...)
1832 npfunc: Callable,
1833 ):
-> 1834 result = self._cython_agg_general(
1835 how=alias,
1836 alt=npfunc,
1837 numeric_only=numeric_only,
1838 min_count=min_count,
1839 )
1840 return result.__finalize__(self.obj, method="groupby")
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/groupby.py:1925, in GroupBy._cython_agg_general(self, how, alt, numeric_only, min_count, **kwargs)
1922 result = self._agg_py_fallback(how, values, ndim=data.ndim, alt=alt)
1923 return result
-> 1925 new_mgr = data.grouped_reduce(array_func)
1926 res = self._wrap_agged_manager(new_mgr)
1927 out = self._wrap_aggregated_output(res)
File /opt/conda/lib/python3.11/site-packages/pandas/core/internals/managers.py:1431, in BlockManager.grouped_reduce(self, func)
1429 result_blocks = extend_blocks(applied, result_blocks)
1430 else:
-> 1431 applied = blk.apply(func)
1432 result_blocks = extend_blocks(applied, result_blocks)
1434 if len(result_blocks) == 0:
File /opt/conda/lib/python3.11/site-packages/pandas/core/internals/blocks.py:366, in Block.apply(self, func, **kwargs)
360 @final
361 def apply(self, func, **kwargs) -> list[Block]:
362 """
363 apply the function to my values; return a block if we are not
364 one
365 """
--> 366 result = func(self.values, **kwargs)
368 result = maybe_coerce_values(result)
369 return self._split_op_result(result)
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/groupby.py:1901, in GroupBy._cython_agg_general.<locals>.array_func(values)
1899 def array_func(values: ArrayLike) -> ArrayLike:
1900 try:
-> 1901 result = self.grouper._cython_operation(
1902 "aggregate",
1903 values,
1904 how,
1905 axis=data.ndim - 1,
1906 min_count=min_count,
1907 **kwargs,
1908 )
1909 except NotImplementedError:
1910 # generally if we have numeric_only=False
1911 # and non-applicable functions
1912 # try to python agg
1913 # TODO: shouldn't min_count matter?
1914 # TODO: avoid special casing SparseArray here
1915 if how in ["any", "all"] and isinstance(values, SparseArray):
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/ops.py:811, in BaseGrouper._cython_operation(self, kind, values, how, axis, min_count, **kwargs)
806 """
807 Returns the values of a cython operation.
808 """
809 assert kind in ["transform", "aggregate"]
--> 811 cy_op = WrappedCythonOp(kind=kind, how=how, has_dropped_na=self.has_dropped_na)
813 ids, _, _ = self.group_info
814 ngroups = self.ngroups
File properties.pyx:36, in pandas._libs.properties.CachedProperty.__get__()
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/ops.py:725, in BaseGrouper.has_dropped_na(self)
719 @final
720 @cache_readonly
721 def has_dropped_na(self) -> bool:
722 """
723 Whether grouper has null value(s) that are dropped.
724 """
--> 725 return bool((self.group_info[0] < 0).any())
File properties.pyx:36, in pandas._libs.properties.CachedProperty.__get__()
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/ops.py:729, in BaseGrouper.group_info(self)
727 @cache_readonly
728 def group_info(self) -> tuple[npt.NDArray[np.intp], npt.NDArray[np.intp], int]:
--> 729 comp_ids, obs_group_ids = self._get_compressed_codes()
731 ngroups = len(obs_group_ids)
732 comp_ids = ensure_platform_int(comp_ids)
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/ops.py:753, in BaseGrouper._get_compressed_codes(self)
750 # FIXME: compress_group_index's second return value is int64, not intp
752 ping = self.groupings[0]
--> 753 return ping.codes, np.arange(len(ping.group_index), dtype=np.intp)
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/grouper.py:691, in Grouping.codes(self)
689 @property
690 def codes(self) -> npt.NDArray[np.signedinteger]:
--> 691 return self._codes_and_uniques[0]
File properties.pyx:36, in pandas._libs.properties.CachedProperty.__get__()
File /opt/conda/lib/python3.11/site-packages/pandas/core/groupby/grouper.py:801, in Grouping._codes_and_uniques(self)
796 uniques = self._uniques
797 else:
798 # GH35667, replace dropna=False with use_na_sentinel=False
799 # error: Incompatible types in assignment (expression has type "Union[
800 # ndarray[Any, Any], Index]", variable has type "Categorical")
--> 801 codes, uniques = algorithms.factorize( # type: ignore[assignment]
802 self.grouping_vector, sort=self._sort, use_na_sentinel=self._dropna
803 )
804 return codes, uniques
File /opt/conda/lib/python3.11/site-packages/pandas/core/algorithms.py:795, in factorize(values, sort, use_na_sentinel, size_hint)
792 # Don't modify (potentially user-provided) array
793 values = np.where(null_mask, na_value, values)
--> 795 codes, uniques = factorize_array(
796 values,
797 use_na_sentinel=use_na_sentinel,
798 size_hint=size_hint,
799 )
801 if sort and len(uniques) > 0:
802 uniques, codes = safe_sort(
803 uniques,
804 codes,
(...)
807 verify=False,
808 )
File /opt/conda/lib/python3.11/site-packages/pandas/core/algorithms.py:595, in factorize_array(values, use_na_sentinel, size_hint, na_value, mask)
592 hash_klass, values = _get_hashtable_algo(values)
594 table = hash_klass(size_hint or len(values))
--> 595 uniques, codes = table.factorize(
596 values,
597 na_sentinel=-1,
598 na_value=na_value,
599 mask=mask,
600 ignore_na=use_na_sentinel,
601 )
603 # re-cast e.g. i8->dt64/td64, uint8->bool
604 uniques = _reconstruct_data(uniques, original.dtype, original)
KeyboardInterrupt:
Now that we have our three 95% bootstrap confidence intervals, we need to get them in the correct format to make error bars on our graph. The method .T
transposes a 2-D array or matrix. In this case, we need all lower limits in one row and all upper limits in another, so we transpose our array and then make it back into a list. The argument that creates error bars also needs the upper and lower limits in the format of distances from the top of the bar in a barchart so we subtract to find those distances.
searched3 = searched.loc[searched.driver_race.isin(['white','black','hispanic'])]
errors = np.array([black_ci, hispanic_ci, white_ci]).T.tolist()
low = searched3["prop_hit"] - errors[0]
high = errors[1] - searched3["prop_hit"]
Now, we can plot our barchart and include the confidence interval we calculated.
plt.bar(searched3['driver_race'], searched3["prop_hit"], yerr=[low,high], capsize=10)
plt.xlabel("Driver's Race")
plt.ylabel("Proportion of Successful Searches")
plt.show()
The 95% bootstrap confidence intervals for Black and Hispanic and Hispanic and White seem to overlap, but those for Black and White don’t, indicating there is a significant difference between the two. Let’s double check this with a hypothesis test for the difference in proportion of successful searches between Black and White drivers.
We will conduct a two-sided permutation test. The null hypothesis for our test is that there is no difference in proportion of successful searches between Black and White drivers. Our alternative hypothesis is that there is a difference.
np.random.seed(42)
differences = np.array([])
shuffled_dat = idot_20_abbrv.loc[idot_20_abbrv.driver_race.isin(['white','black'])].copy()
for i in np.arange(1000):
shuffled_dat['shuffled_races'] = np.random.permutation(shuffled_dat["driver_race"])
shuffle_searched = shuffled_dat.groupby("shuffled_races")[["any_search","search_hit"]].sum().reset_index().rename(columns={"any_search":"num_searched", "search_hit":"num_hit"})
shuffle_searched['prop_hit'] = shuffle_searched['num_hit'] / shuffle_searched['num_searched']
diff = shuffle_searched.loc[shuffle_searched['shuffled_races'] == 'white','prop_hit'].iloc[0] - shuffle_searched.loc[shuffle_searched['shuffled_races'] == 'black','prop_hit'].iloc[0]
differences = np.append(differences, diff)
data_diff = searched3.loc[searched3['driver_race'] == 'white','prop_hit'].iloc[0] - searched3.loc[searched3['driver_race'] == 'black','prop_hit'].iloc[0]

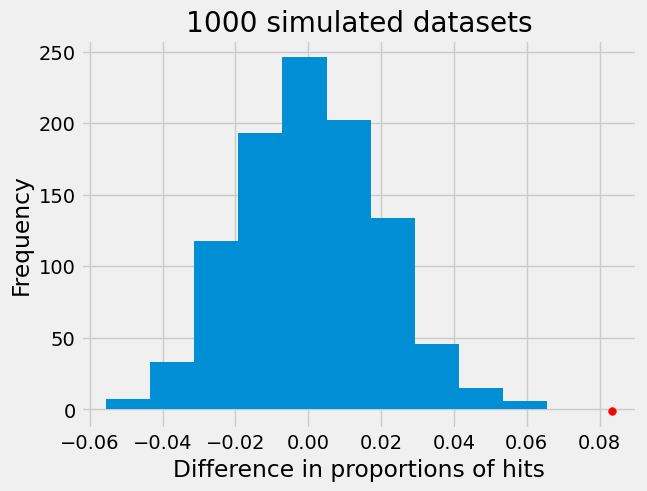

plt.hist(differences)
plt.scatter(data_diff, -1, color='red', s=30)
plt.title('1000 simulated datasets');
plt.xlabel("Difference in proportions of hits");
plt.ylabel("Frequency");
Our permutation test shows that the difference in proportions we see in our data is not consistent with what we would expect if there was no difference between the two groups. In fact, the red dot does not overlap with our histogram at all indicating our p-value is 0. So, we can reject the null hypothesis that Black and White drivers have similar proportions of search hits, and conclude that contraband is found on Black drivers at a significantly lower rate than White drivers!
Conclusions#
We’ve showed two different strategies for investigating racial bias: benchmarking and outcomes analysis. Both strategies have been used by real data scientists in cities like Chicago, Nashville, and New York to detect biased police practices.
This case study shows that you can answer important data science questions with the information you have learned so far in this book. Skills like grouping and merging, creating and dropping columns in DataFrames, and applying functions to a column are all extremely useful and used very often in data science.
In addition, our investigation of traffic stops illustrates the wide variety of important data science projects. Projects like this have the potential to influence policy and legislation. Other data science projects can affect development of new medications or therapies, help understand history, or lead to technology like Chat-GPT or Google BARD.
However, many of these projects involve additional statistical and computation skills like machine learning or being able to use large amounts of data from databases. These more advanced topics are what we will cover in Part 2 of this book.
